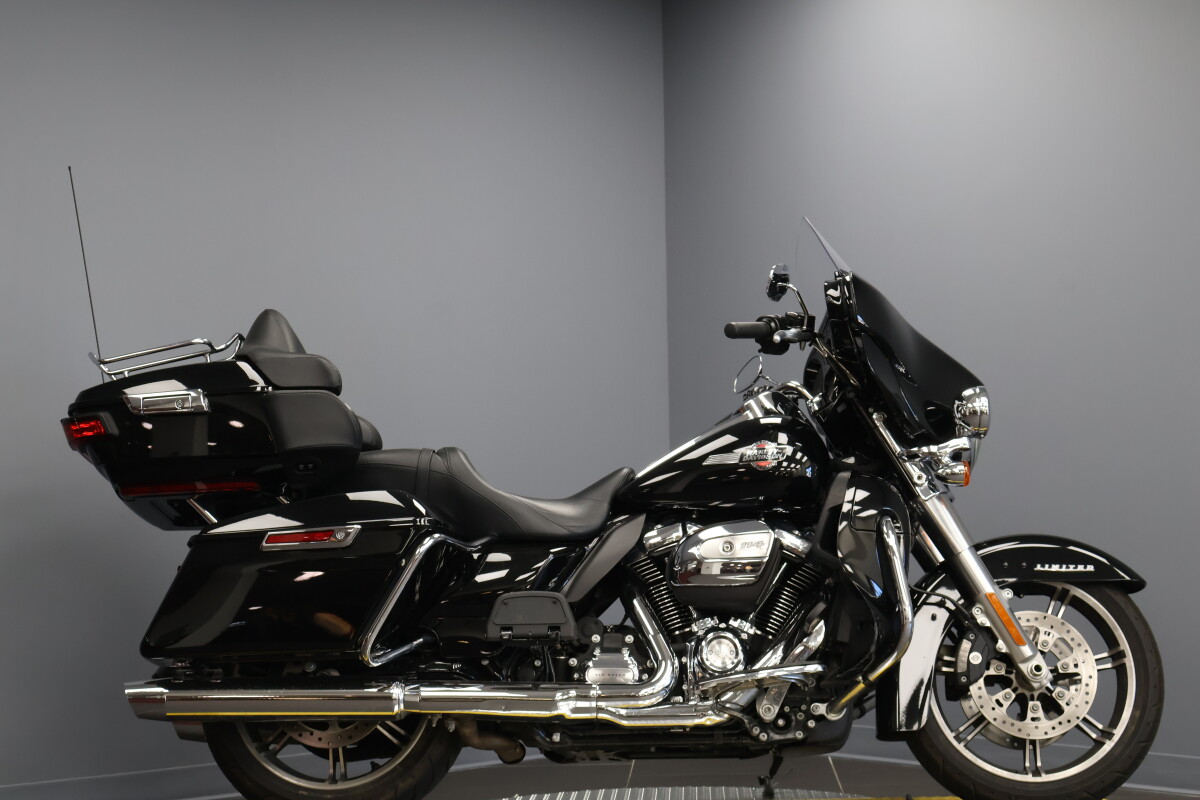

2023 Harley-Davidson® Ultra Limited Premium touring performance with zero compromises to the ride. Features may include: Riders seeking the fully-loaded touring experience Bold styling and comfort with a vented batwing fairingTwin-Cooled™ Milwaukee-Eight 114 engine and heated grips. REFLEX™ LINKED BREMBO® BRAKES WITH STANDARD ABS Designed to help prevent the wheels from locking under braking to assist the rider in maintaining control when braking in a straight-line. VENTED BATWING FAIRING The bold styled vented batwing fairing delivers smooth air flow and reduced head buffeting. TOURING FOR TWO Equipped with a comfort seat for you and a passenger seat and backrest for your companion, saddle up and set out in maximum comfort.

This bike comes fully H-D certified for the reassurance and quality you look for in a pre-owned vehicle. With a 110 point inspection, 12 month/unlimited mileage powertrain warranty and expanded coverage available with H-D Extended Service Plan and Special retail financing from HDFS, this is the bike to take you where you want to go! Let's ride!

: Ironclad Harley-Davidson®

Specifications

Dimensions

add remove
- Length:

  102.4 in
- Seat height, unladen:

  29.1 in
- Ground clearance:

  5.3 in
- Rake (steering head):

  26
- Trail:

  6.7 in
- Wheelbase:

  64.0 in
- Tires, front specifications:

  BW 130/70B18 63H
- Tires, rear specifications:

  BW 180/55B18 80H
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  880 lbs
- Weight, in running order:

  917 lb
- Luggage capacity – volume:

  4.7 cu ft (0.132 m3)
Engine

add remove
- Engine:

  Twin-Cooled™ Milwaukee-Eight™ 114
- Bore:

  4.0 in
- Stroke:

  4.5 in
- Displacement:

  113.99 in³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-1-2 dual exhaust with tapered mufflers
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  122.4 ft-lb
- Engine torque (RPM):

  2750
- Lean angle, right (deg.):

  32
- Lean angle, left (deg.):

  32
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  42.8 mpg (5.5 l/100km)
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions :

  146 g/km CO₂
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.593
- Gear ratios (overall) 2nd:

  6.65
- Gear ratios (overall) 3rd:

  4.938
- Gear ratios (overall) 4th:

  4
- Gear ratios (overall) 5th:

  3.407
- Gear Ratios (overall) 6th:

  2.875
Chassis

add remove
- Wheels, optional style type:

  Gloss Black Slicer II
- Wheels, front type:

  Slicer II cast aluminum with clear coat
- Wheels, rear type:

  Slicer II cast aluminum with clear coat
- Brakes, caliper type:

  32 mm, 4-piston fixed front and rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, running lights, front fender running lights, directional lights, neutral, low oil pressure, engine diagnostics, accessory, speakers, turn signals, security system, gear indication, battery, low fuel warning, cruise control, ABS (if equipped), f
- Gauges:

  Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
Infotainment

add remove
- Infotainment system:

  Boom!™ Box GTS
- Type:

  Full Color TFT
- Watts per channel:

  25
- Speakers:

  4
- Speaker size:

  5.25 inch standard
- Headset specifications (if equipped):

  16-64 ohms
- AM:

  Standard
- FM:

  Standard
- Weather Band (WB):

  Standard
- SD Card, Flash Drive and MP3 — via USB Connection:

  Supported
- Sirius^XM Presets:

  20 - P&A Upgrade (USA & Canada only)
- Languages:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Voice Recognition Languages: Tuner / Media / Navigation:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Text-to-Speech (TTS) languages:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Rider / passenger intercom:

  Standard
- Vehicle information screen:

  Standard
- USB:

  USB/MTP/iPod/iPhone
- Bluetooth:

  Phone/Media Supported
