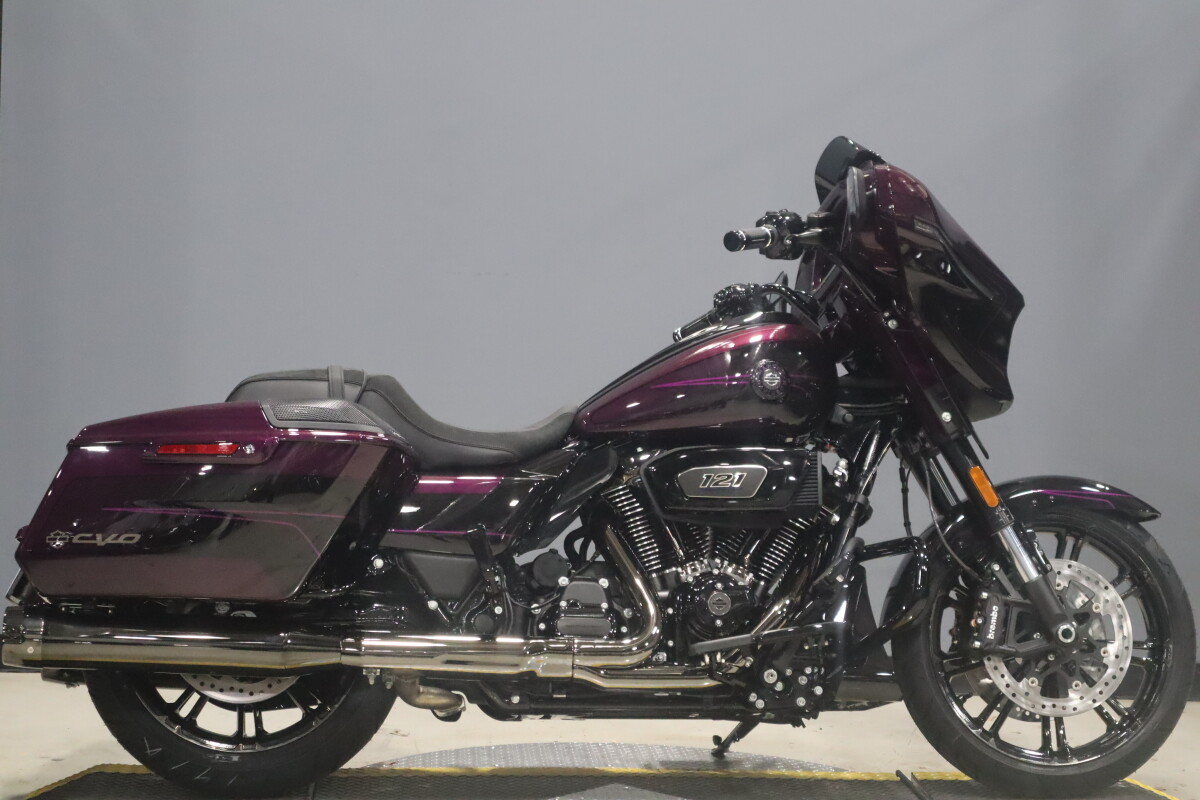

2025 Harley-Davidson® CVO™ Street Glide® Features may include: DESIGNPremium Paint CVO paint is the peak of craftsmanship, with layers that deliver unmatched depth and texture. Each model gets its own custom design, with perfectly matched trim and components to complete the package. Premium Finishes Chrome finishes and paint-matched components are different for each paint scheme, ensuring the highest level of custom feel and unique identity. New Cast Wheels Unique, lightweight cast wheels designed specifically for the 2025 CVO Street Glide are complemented by top-shelf Brembo braking components. PERFORMANCEMilwaukee-Eight® VVT 121 Engine Dynamic performance across a wide rev range, supported by variable valve timing that changes performance based on RPM to deliver the most power possible. Rear Shocks Asymmetric rear shocks allow for quick preload adjustment, ensuring optimal performance regardless of changing payload. Front Forks 47mm SHOWA® inverted forks are comfortable and plush on the highway while maintaining confidence in fast corners. INNOVATIONSkyline™ OS Connected infotainment system has Wi-Fi-enabled Skyline OS, intuitive menu navigation, and enhanced on-the-fly map updates. 12.3-Inch TFT Display A massive touchscreen you would expect in the latest luxury cars, providing bright and clear information, including ride modes.

Ironclad Harley-Davidson®

Specifications

  • Dimensions
    add remove
    • Length:
      94.9 in
    • Overall width:
      38.4 in
    • Seat height, unladen:
      28.1 in
    • Ground clearance:
      5.5 in
    • Rake (steering head):
      26
    • Trail:
      6.7 in
    • Wheelbase:
      64.0 in
    • Tires, front specifications:
      130/60B19 M/C 61H
    • Tires, rear specifications:
      180/55B18 M/C 80H
    • Fuel Capacity:
      6.0 gal
    • Oil capacity:
      5 qt.
    • Weight, as shipped:
      800 lbs
    • Weight, in running order:
      838 lb
    • Luggage capacity – volume:
      2.2 cu ft (0.062 m3)
    • Tire, type:
      Dunlop® Harley-Davidson Series, bias blackwall front and rear
  • Engine
    add remove
    • Engine:
      Milwaukee-Eight® VVT 121
    • Bore:
      4.1 in
    • Stroke:
      4.6 in
    • Displacement:
      120.64 in3
    • Compression ratio:
      11.4:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-1-2 dual exhaust
  • Performance
    add remove
    • Engine torque testing method:
      J1349
    • Engine torque:
      139.4 ft-lb
    • Engine torque (RPM):
      3000
    • Horsepower:
      115 HP / 86 kW @ 4500 rpm
    • Lean angle, right (deg.):
      32
    • Lean angle, left (deg.):
      32
    • Fuel economy testing method:
      Estimated City/Hwy
    • Fuel economy:
      45 mpg (5.1 l/100 km)
  • Powertrain
    add remove
    • Primary drive:
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st:
      9.593
    • Gear ratios (overall) 2nd:
      6.65
    • Gear ratios (overall) 3rd:
      4.938
    • Gear ratios (overall) 4th:
      4
    • Gear ratios (overall) 5th:
      3.407
    • Gear Ratios (overall) 6th:
      2.875
  • Chassis
    add remove
    • Front fork:
      47 mm Inverted 1x1 Front Forks
    • Rear shocks:
      Dual adjustable emulsions suspension with remote preload adjustment on the left shock, and threaded preload on the right shock
    • Wheels, front type:
      Gloss black, 9-spoke cast aluminum
    • Wheels, rear type:
      Gloss black, 9-spoke cast aluminum
    • Brakes, type:
      Dual floating rotors (front), fixed rotor (rear)
    • Brakes, caliper type:
      32 mm, 4-piston fixed dual radially mounted front, and single axially mounted rear
  • Infotainment
    add remove
    • Screen size:
      12.3 in
    • Infotainment system:
      Skyline™ OS
    • Type:
      Full Color TFT
    • Watts per channel:
      125
    • Speakers:
      4
    • Speaker size:
      Two 6.5in fairing speakers, and two 5x7in saddlebag speakers
    • Headset specifications (if equipped):
      Harley-Davidson Packtalk Edge wireless Bluetooth® headset
    • AM:
      Standard
    • FM:
      Standard
    • Languages:
      Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese
    • Hands-free mobile phone — via Bluetooth:
      Standard
    • Voice Recognition Languages: Phone functions only:
      Phone dependent
    • Voice Recognition Languages: Tuner / Media / Navigation:
      Phone dependent
    • Text-to-Speech (TTS) languages:
      Phone dependent
    • Rider / passenger intercom:
      Standard (passenger headset sold separately)
    • Vehicle information screen:
      Standard
    • USB:
      USB-C/MTP/iPod/iPhone, any device with proper adapters to the electric power outlet located in the inner fairing storage
    • Bluetooth:
      Phone/Media Player, Headset
