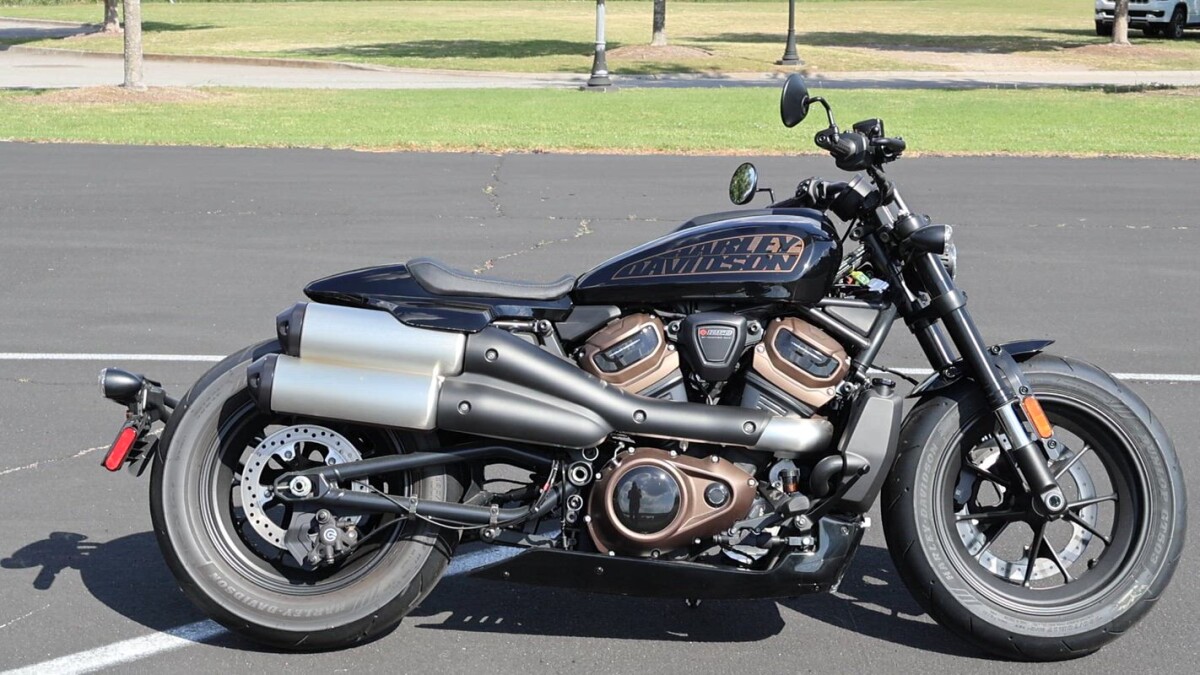

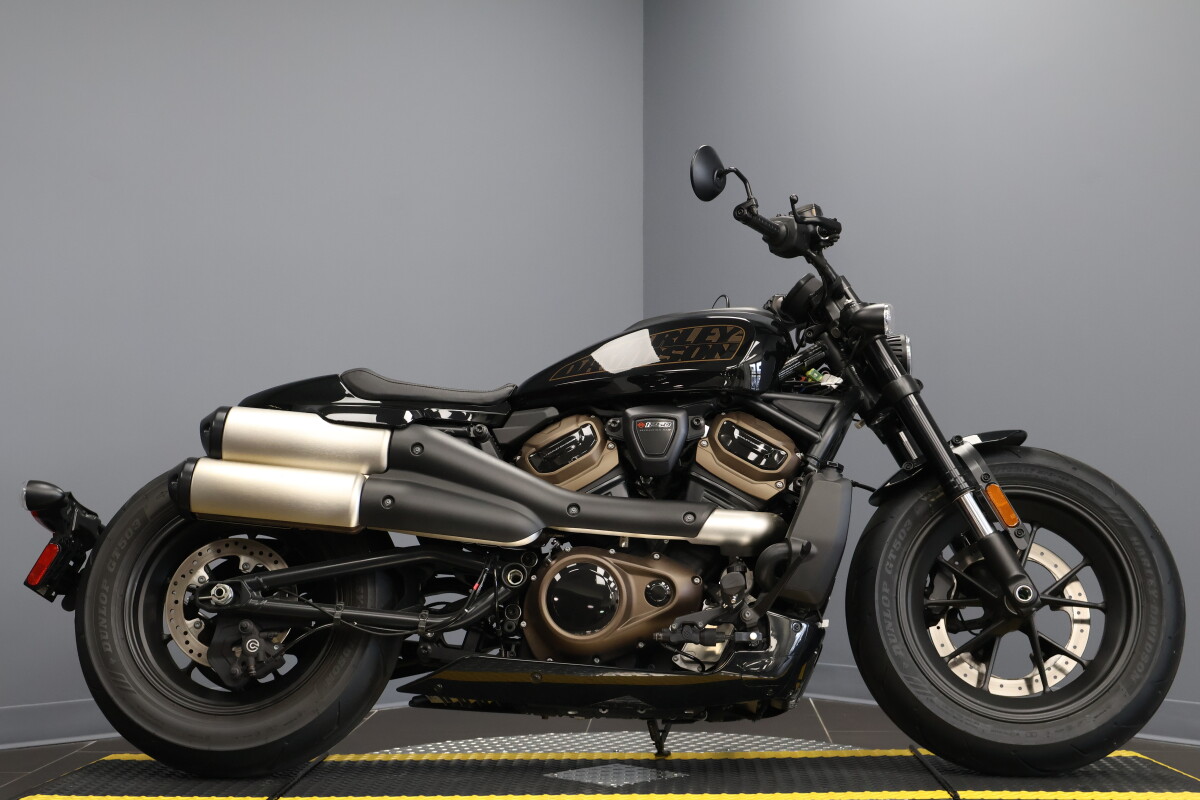

2024 Harley-Davidson® Sportster® S! ALWAYS PERFORM, NEVER CONFORM. Features may include: REVOLUTION® MAX 1250T ENGINE Featuring double-overhead camshafts and variable valve timing, the Revolution Max 1250T is a liquid-cooled powertrain designed to give you a strong burst of power when you want it and help you stay in control while riding. RIDER TECHNOLOGY Choose from three pre-programmed Ride Modes—Sport, Road, or Rain—or create your own custom mode with specific settings for power delivery, engine braking, and cornering. HIGH-MOUNTED EXHAUST Inspired by the glory days of H-D flat-track racing, the pipes are crafted from corrosion-resistant, 304-series stainless steel and engineered to deflect exhaust heat away from the rider’s legs and the bike’s tail section. INSTRUMENTATION A Bluetooth®-equipped, four-inch-round, thin-film transistor display shows digital gauges, indicators, ride modes, and turn-by-turn navigation when paired with the Harley-Davidson mobile app. CHASSIS The Revolution Max 1250T is a structural component of the motorcycle chassis, which significantly reduces overall weight, lowers the center of gravity, and improves handling.

This bike comes fully H-D certified for the reassurance and quality you look for in a pre-owned vehicle. With a 110 point inspection, 12 month/unlimited mileage powertrain warranty and expanded coverage available with H-D Extended Service Plan and Special retail financing from HDFS, this is the bike to take you where you want to go! Let's ride!

: Ironclad Harley-Davidson®

Specifications

Dimensions

add remove
- Length:

  89.4 in
- Overall width:

  33.1 in
- Overall height:

  42.7 in
- Seat height, unladen:

  30.1 in
- Ground clearance:

  4.1 in
- Rake (steering head):

  30
- Trail:

  5.8 in
- Wheelbase:

  59.8 in
- Tires, front specifications:

  160/70TR17 73V
- Tires, rear specifications:

  180/70R16 77V
- Fuel Capacity:

  3.1 gal
- Oil capacity:

  4.75 qt.
- Weight, as shipped:

  487 lbs
- Weight, in running order:

  502 lb
- Tire, type:

  Dunlop® Harley-Davidson Series, radial
- Fork angle:

  28
- Reserve fuel capacity, fuel injection:

  0.8 gal
- Coolant capacity:

  0.6 gal
- Gross axle weight rating, front:

  359 lbs
- Gross axle weight rating, rear:

  595 lbs
Engine

add remove
- Engine:

  Revolution® Max 1250T
- Bore:

  4.1 in
- Stroke:

  2.8 in
- Displacement:

  76.40 in³
- Compression ratio:

  12.0:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1-into-2; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  92.9 ft-lb
- Engine torque (RPM):

  6000
- Horsepower:

  121 HP / 90 kW @ 7500 rpm
- Lean angle, right (deg.):

  34
- Lean angle, left (deg.):

  34
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  49 mpg (4.8 l/100km)
- CO₂ emissions testing method:

  –
- CO₂ emissions :

  –
Powertrain

add remove
- Primary drive:

  Gear, 49/89 ratio
- Gear ratios (overall) 1st:

  12.21
- Gear ratios (overall) 2nd:

  9.022
- Gear ratios (overall) 3rd:

  6.994
- Gear ratios (overall) 4th:

  5.641
- Gear ratios (overall) 5th:

  4.731
- Gear Ratios (overall) 6th:

  4.131
Chassis

add remove
- Front fork:

  43 mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps.
- Rear shocks:

  Linkage-mounted, piggyback monoshock with compression, rebound and hydraulic spring preload adjustability
- Wheels, front type:

  Aluminum cast, satin black
- Wheels, rear type:

  Aluminum cast, satin black
- Brakes, type:

  Front: single rotor, floating, tower- mounted Rear: solid uniform expansion rotor
- Brakes, caliper type:

  Front: radially mounted, monoblock, 4-piston caliper Rear: floating, single piston caliper
- ABS:

  Standard
Electric

add remove
- Gauges:

  4 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, musi
- Battery:

  Sealed, maintenance-free, absorbed glass mat (AGM) battery, 12V, 12Ah, 225 CCA at 0°F
- Charging:

  Three-phase, 45 Amp system (300 Watts @13 Volts, 1200 rpm, 585 Watts max power @ 13 Volts, 2250 rpm)
- Starting:

  0.9 kW electric with direct drive starter motor engagement
- Electric power outlet:

  USB C-Type , Output 5V at 2.4 Amp
Infotainment

add remove
- Screen size:

  4 in (102 mm)
- Type:

  Color TFT
- Headset specifications (if equipped):

  Bluetooth
- Languages:

  Arabic Chinese (Simplified/Traditional) Czech Danish Dutch English (default) Finnish French (Canada/France) German Greek Hungarian Italian Japanese Korean Norwegian Polish Portuguese (Portugal/Brazil) Indonesian Russian Slovak Spanish (Mexico/Spain) Swedi
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Headset function only
- Vehicle information screen:

  TPMS, Engine temp, Battery Voltage, Ambient Air Temp
- USB:

  Charging and Instrument update, USB-C, 5V, 3A
- Bluetooth:

  Phone/Media Supported
