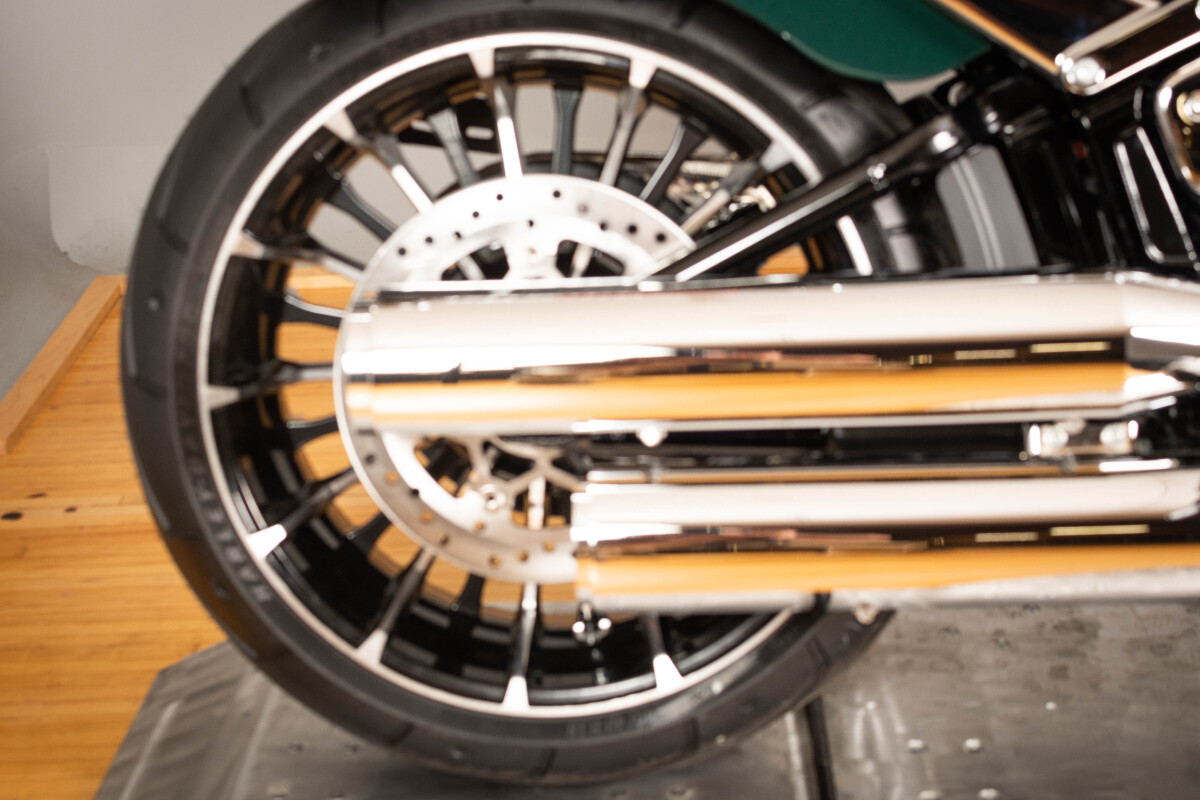

2024 Harley-Davidson® Breakout®WAKE UP YOUR SENSES WHILE STEALING GLANCES. Features may include: MILWAUKEE-EIGHT® 117 ENGINE This air- and oil-cooled engine is the pinnacle of torque and displacement in factory-installed, regular-production Harley-Davidson powertrain. HEAVY BREATHER High-performance Heavy Breather intake with forward-facing exposed filter element flows more air into the engine. CHROME APPEAL Polished chrome adorns everything from the fender supports, side covers, and muffler shields, to the turn signals, mirrors, and Heavy Breather intake. WHEELS The 21-inch front and 18-inch rear cast aluminum wheels have 26 spokes with black finishes and machined details. TWO-INTO-TWO EXHAUST High-performance, offset shotgun exhaust improves mid-range torque and produces a strong, stirring note. CHASSIS Softail chassis reduces weight and improves rigidity while maintaining the classic look of a hard tail.

: Ironclad Harley-Davidson®

Specifications

Dimensions

add remove
- Length:

  93.3 in
- Seat height, unladen:

  26.2 in
- Ground clearance:

  4.5 in
- Rake (steering head):

  34
- Trail:

  5.7 in
- Wheelbase:

  66.7 in
- Tires, front specifications:

  130/60B21,63H,BW
- Tires, rear specifications:

  240/40R18,79V,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  653 lbs
- Weight, in running order:

  683 lb
- Tire, type:

  Michelin^® Scorcher^® "11" front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight™ 117
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.2:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 staggered; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  123.2 ft-lb
- Engine torque (RPM):

  3500
- Horsepower:

  101 HP / 75 kW @ 4750 rpm
- Lean angle, right (deg.):

  26.8
- Lean angle, left (deg.):

  26.8
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  47 mpg (5 l/100 km)
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions :

  135 g/km CO₂
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment
- Wheels, front type:

  Gloss black, 26-spoke cast aluminum
- Wheels, rear type:

  Gloss black, 26-spoke cast aluminum
- Brakes, type:

  Front and rear black, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  All LED, low beam, high beam and signature position lamp; Bullet-style, multi-function LED stop/tail/turn signals; Incandescent bullets
- Gauges:

  2.14-inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
